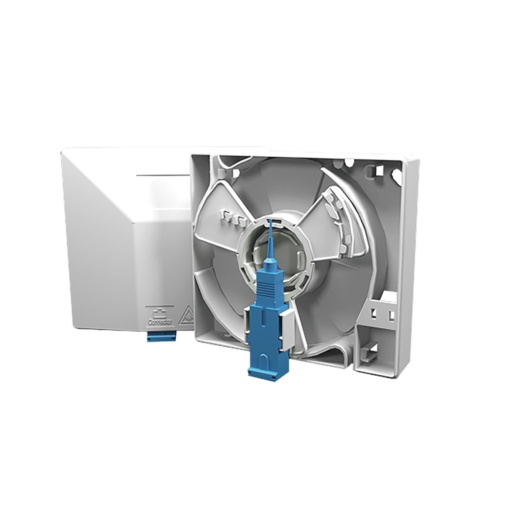

Fiber Optic Access Terminal Panel, FTTH Socket, 1 Ports SC, Loaded with 1 Adapter SC/UPC

Description:

The equipment is used as a termination point for the drop cable to connect with ONU internal of apartment in FTTx communication network system. The fiber splicing can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building

Characteristics:

• Suitable for multi type module installation, application in the work area routing subsyste
• The embedded surface box, installation, convenient disassembly with protective door, dust according to customer requirements can be printed LOG
• Made up of ABS+PC/ ABS high quality engineering plastic material with excellent intensity.
• Application of optical fiber with SC, LC, DLC different environment bright dress, flush plate. A combination of all the modules can be according to customer selection and configuration
• Can be opened and closed easily.

Mechanical specifications:

• External dimension(in): 3.6 x 3.3 x 1.1
• External dimension(mm): 93 x 83 x 29
• Color: RAL 9010
• Number of inlet ports: 1
• Number of outlet ports: 1
• Fiber cable diameter of the input port(mm): 2*3
• Capacity(Max): 2 cores
• IP protection level: IP20
• Flammability: UL94-V0 can be customized according to requirements
• Neutral salt spray test (NSS): 48h
