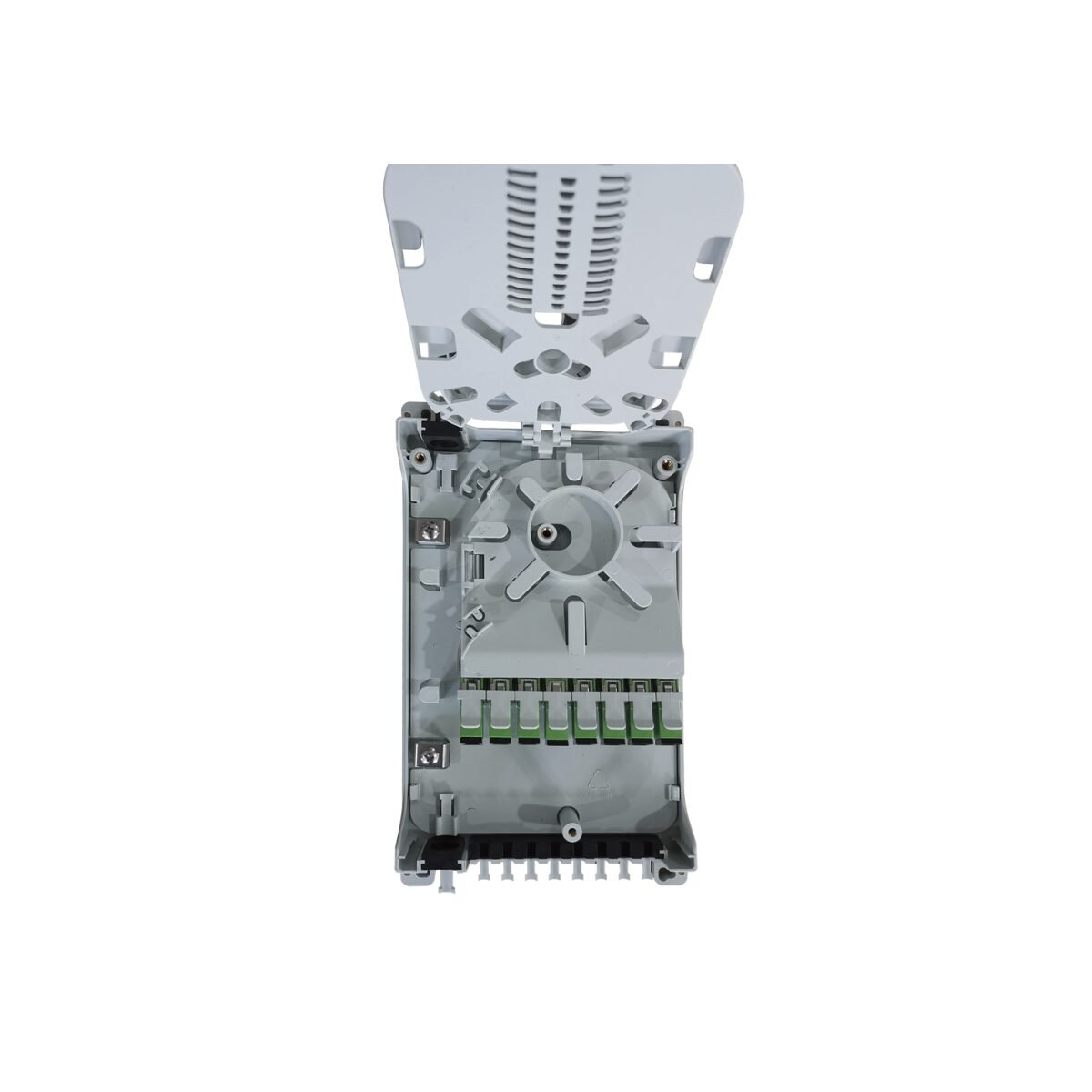

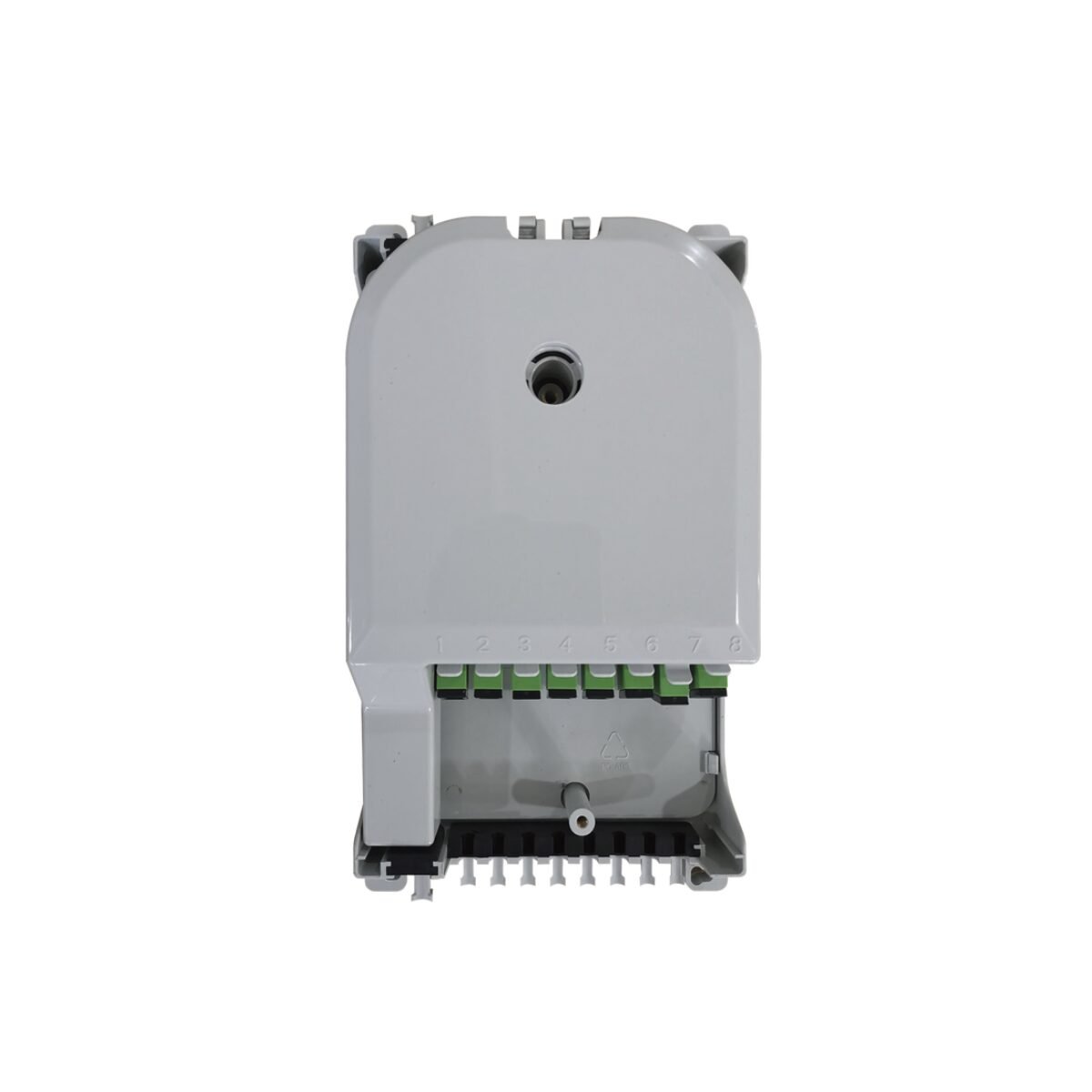

Fiber Termination Box, FTTH, 8 Ports, IP55, Loaded with 8 Adapters SC/APC. Grayish White Color Standard Configuration for Wall

Fiber Distribution Box is is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Specification:

• Anti-UV (Ultraviolet)
• Economic design with plastic adaptor panel
• Uncut cable port for feeder cables.
• Cable, pigtails, and patch cords are running through their own paths without disturbing each other, easy maintenance.
• Box can be installed by the way of wall-mounted.

Applications:

• FTTH access network
• Telecommunication network
• CATV networks
• Data communications network
• Local area networks

Configuration Table:

• Installation Method: Wall-mounted
• Color: White / Gray
• Material: PC+ABS
• Cable Ports: 2 Ports (For main cable) + 8 Ports (For drop cable)
• Capacity Of Splice: Tray 2 Pcs  (12 Cores / Tray)
• Adapter Ports (SC): 8 Pcs ( Pre-installed Reinforced)
• Dimensions H×W×D (in): 8.7 x 4.9 x 1.9
• Dimensions: H×W×D (mm): 222 × 126 × 50
