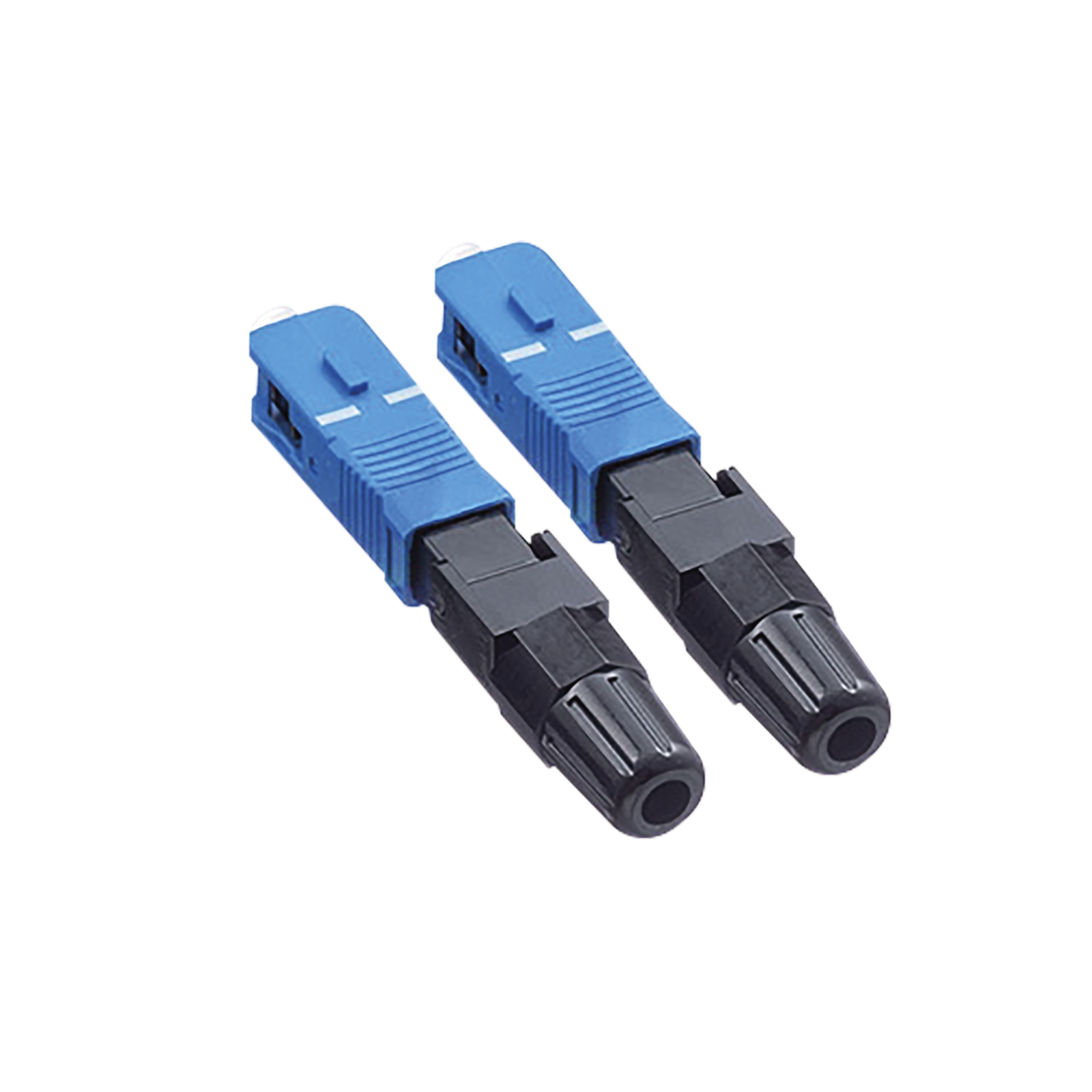

Field Assembly Fast Connector, SC/UPC, Screw Type

The pre-embedded fiber in the ferrule of field assembly optical connector has already been pre-polished at the patchcord workshop. Just strip, cleave and clean the fiber and then insert the fixed-length fiber and connect with the pre-embedded fiber by index-matching gel.

Features:

• Push-tight structure of fiber fastening, high precision of fiber connection;
• Integral structure, simple structure, high stability and reliability, low cost;
• Small size, suitable for narrow space environment;
• Tail is screw type, excellent tensile strength,> 40N / 2min;
• Easy to operate, fast to assemble, high success rate, long time of using, easy maintenance.

Specifications:

• Connector: SC/UPC
• Model: FTB-SC-UPC-01
• Insertion Loss: ≤0.25dB
• Return Loss: ≥50dB
• Applicable Cable: 2*3mm FTTH Drop Cable
• Tensile Strength: ＞40N/2min
• Operating Temperature: -40C~+85C
• Repeatability: ≤0.2dB
• Repeated assembly: ≥10 times
• Mate and demate: ≥500 times
• Dimension: 2 x 0.4 x 0.4 in (50.3 x 9.8 x 9.8mm)
