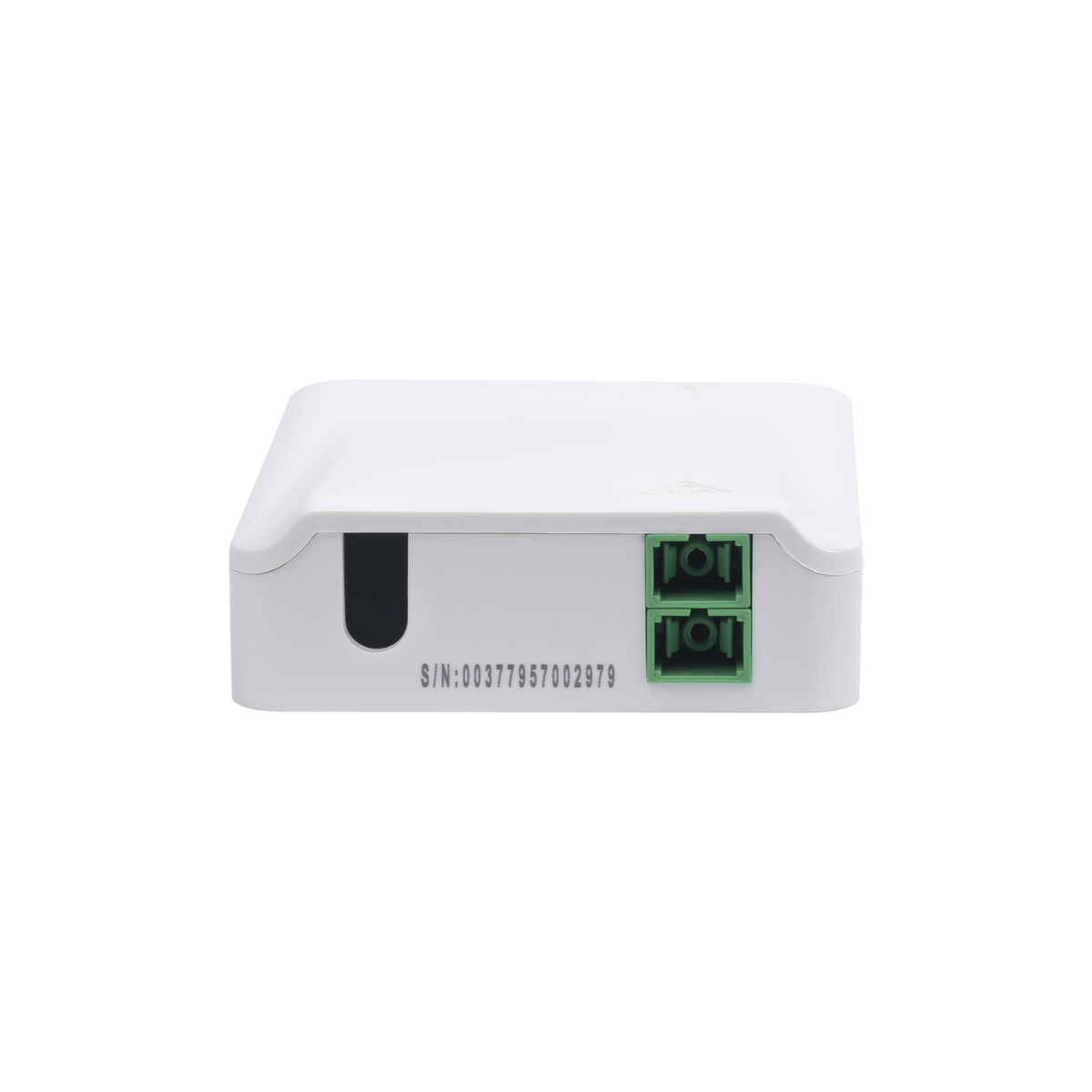

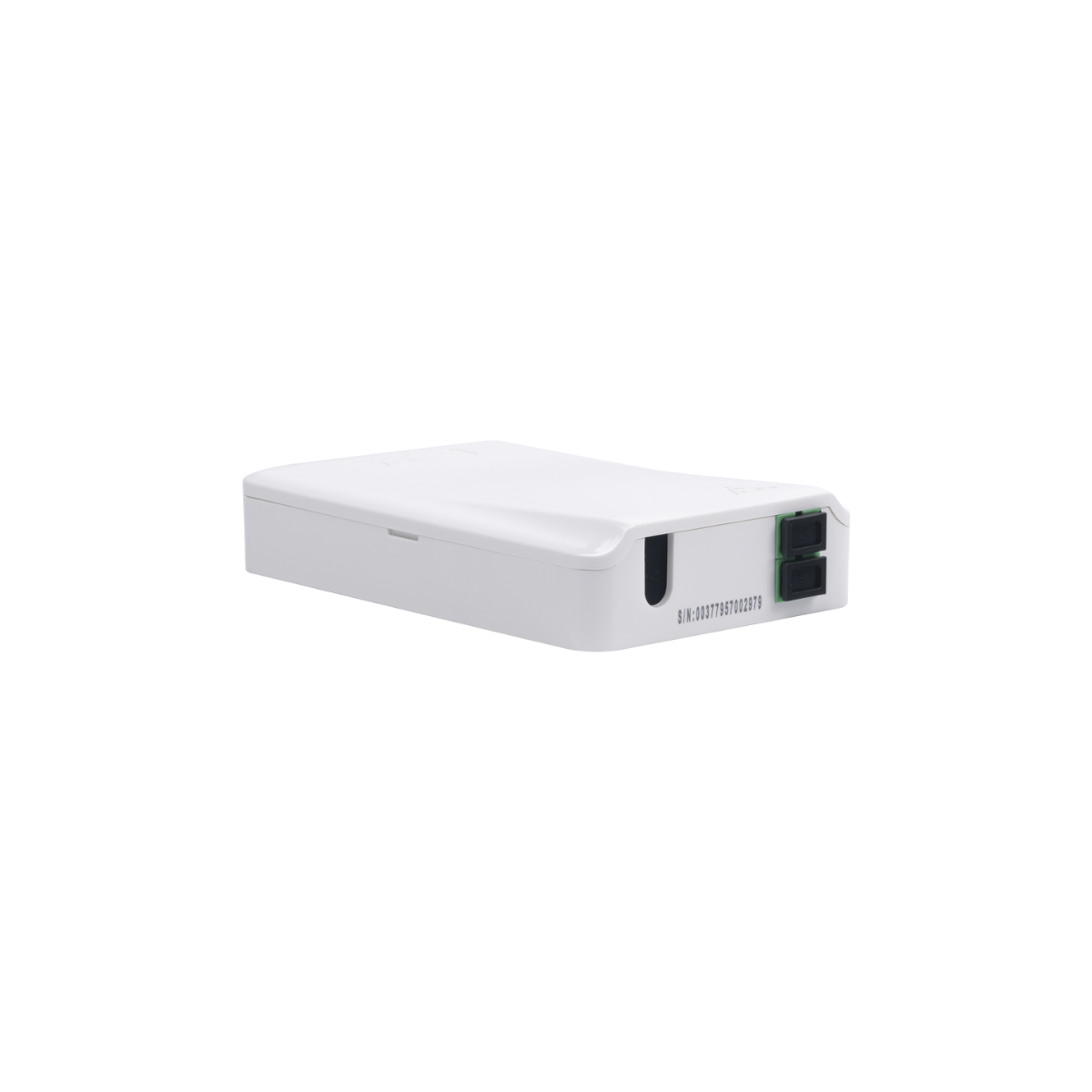

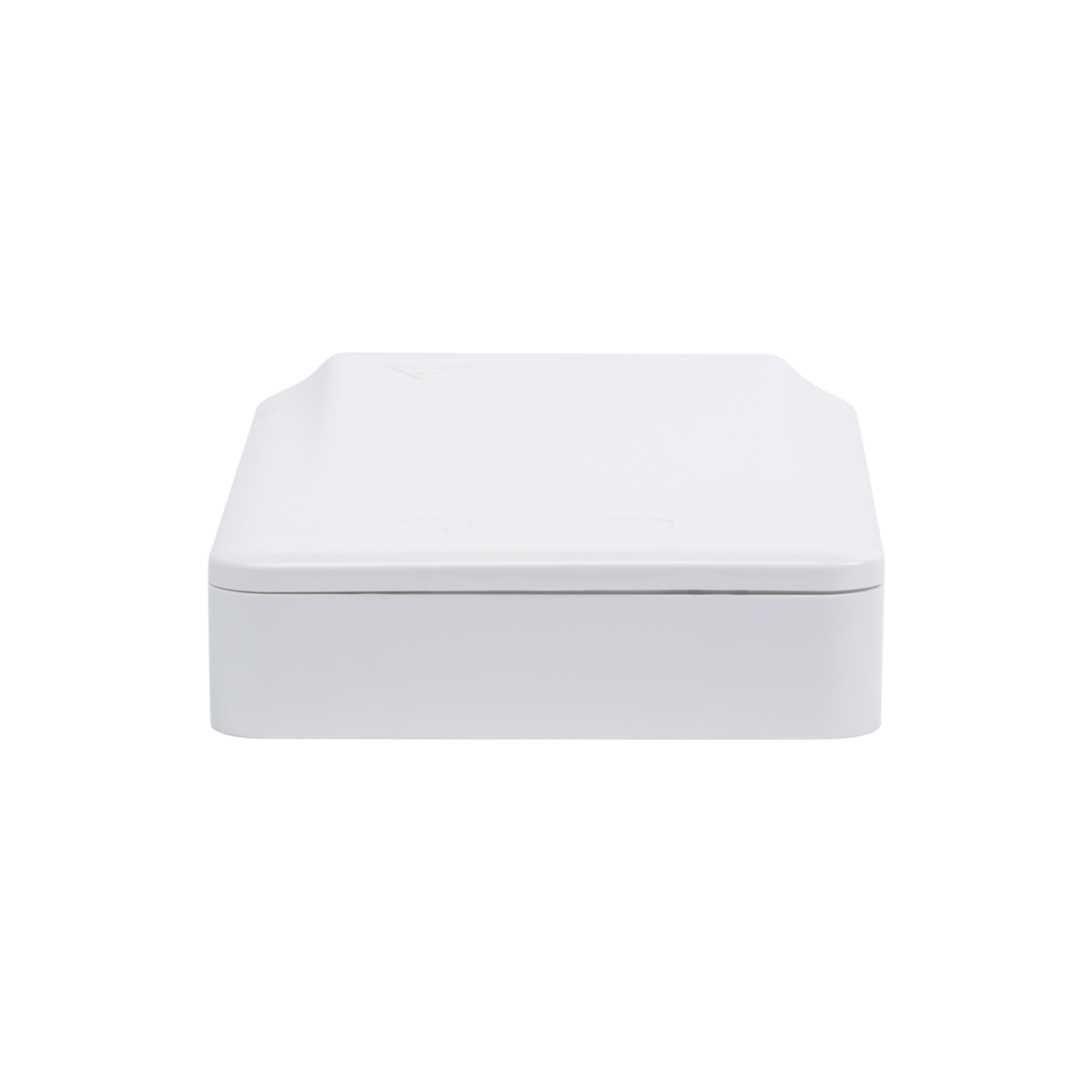

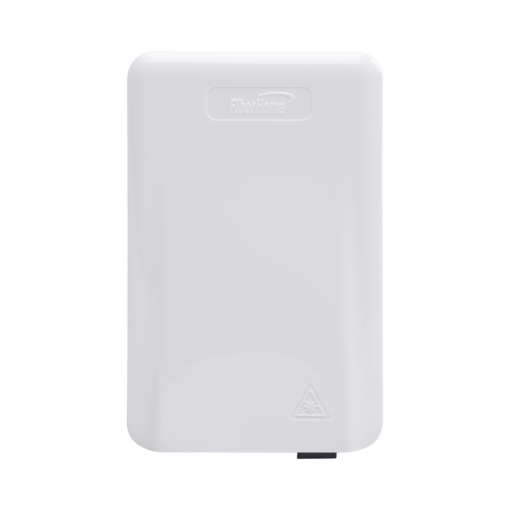

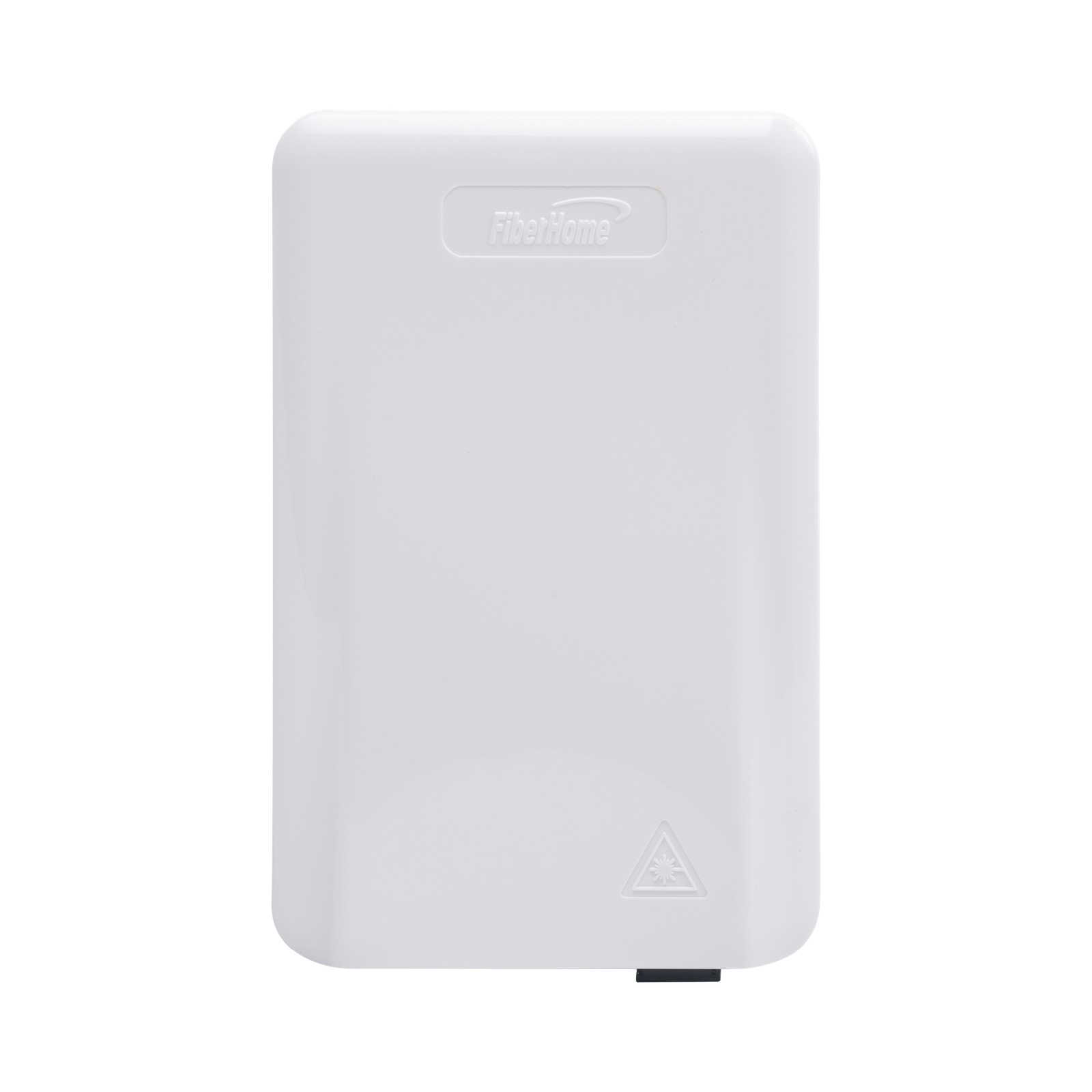

FTB-506 is a compact fiber terminal used at the final fiber termination point in the customer premises. It will provide mechanical protection and manage fiber control in an attractive format suitable for customer premises usage. It is used to terminate the internal fiber cable in the customer premise to a point ready for connection to an Optical Network Unit (ONU/ONT) both for Multi-Dwelling Unit (MDU) and Single Dwelling Unit (SDU).
Â
Features:

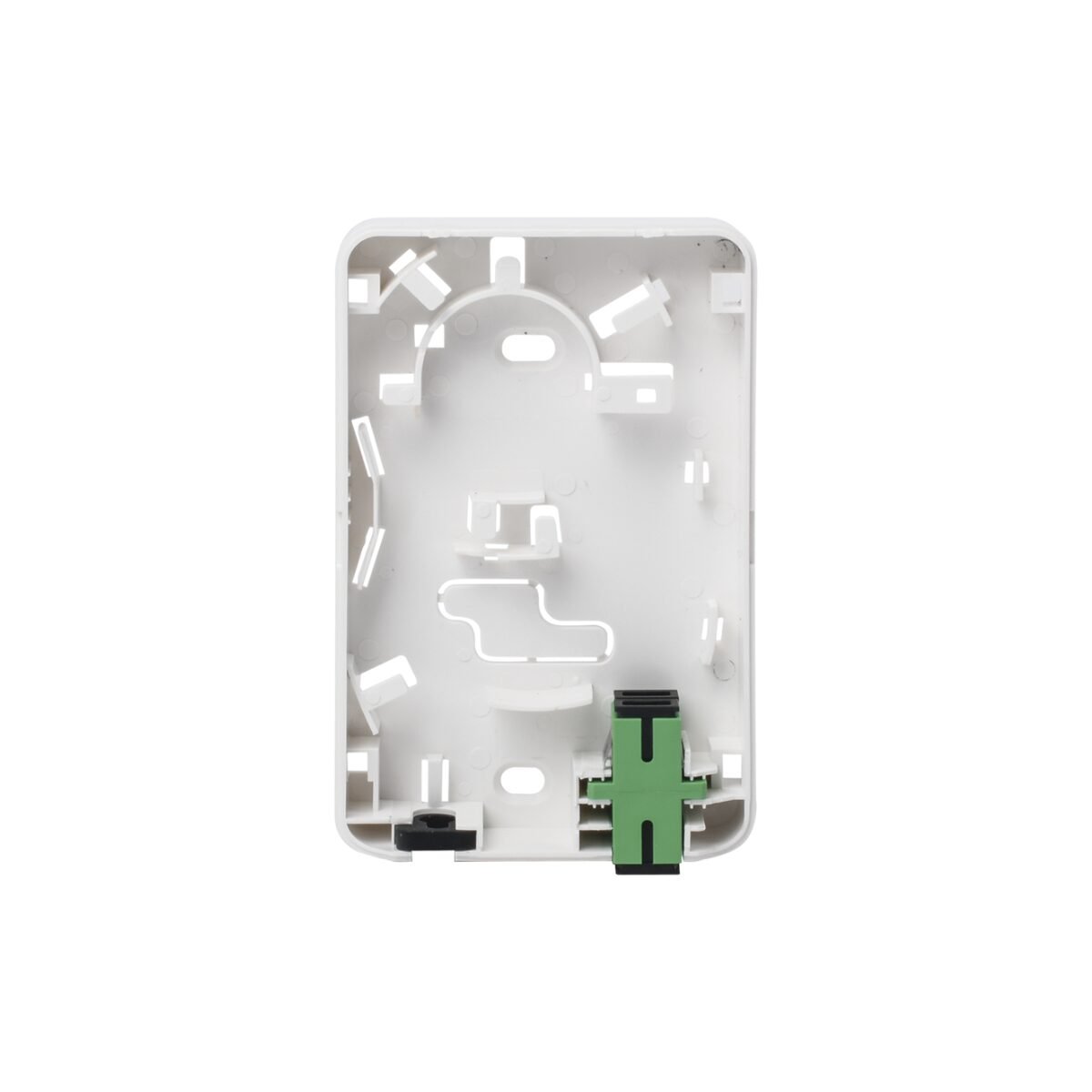

- Allows to keep 2 fusion splices or 2 field terminated connectors
- Proper routing, bend radius protection, and strain relief of the incoming cable
- Drop cable terminated with field assembly or fusion splice with pigtail
- Material is ABS/PC, which is flame retardant
Â
Specification:
- Dimension: 78 x 120 x 25.4 mm
- Installation: Wall surface mounted, indoor application
- Maximum cable diameter for round drop cable: â¤Î¦ 5 mm x1 cable
- Maximum cable diameter for flat drop cable: 2 x 3 mm x2 cables
- Protection Level: IP30
- Color: White
