The GWN7000 is a powerful multi-WAN Gigabit VPN router for businesses. Ideal for large corporations, small to mid-sized businesses, retail stores, schools, hotels and hospitals, the GWN7000 supports complete WiFi and VPN solutions that can be shared across one or many different physical locations. It offers high-performance routing and switching power and a hardware-accelerated VPN client / server for secure connectivity between offices. To maximize network reliability, the GWN7000 supports traffic load balancing and failover.
The GWN7000 includes an integrated controller and an automated mastering master that can configure and manage up to 300 GWN Series WiF Access Points on the network. It can be easily operated through the intuitive user interface based on a product browser, which also offers a central dashboard for monitoring and controlling the network.
Specifications

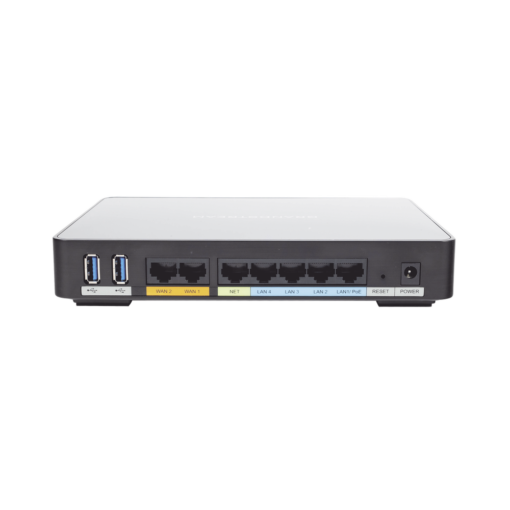

Network Interfaces
- 1 port configurable as LAN, WAN or VoIP of 10/100/1000 Mbps with automatic detection
- 4 10/100/1000 Mbps LAN ports with automatic detection
WAN
- DHCP
- Static IP
- PPPoE
- Load balancing and failover
- Rule-Based Routing
Lan
- DHCP Server
- DNS cache
- Multiple zones
- VLAN
Routing Performance
- Up to 1 million packets per second with a 64-byte packet size
USB
- 3G / 4G / LTE as WAN (pending)
- Printer Sharing
- File Sharing
Auxiliary Ports
- 2 USB 3.0 ports, 1 reset hole
Mounting
- Indoor wall mount, desk
LED
- 8 green LEDs for device tracking and status indication
Network Protocols
IPv4, IPv6, 802.1Q, 802.1p
QoS
- VLAN, TOS, supports multiple traffic classes, filter per port, IP address, DSCP and policing
Firewall
- NAT, DMZ, Port Forwarding, SPI, UPnP
VPN
- Protocols: PPTP, L2TP / IPSec, OpenVPN
- Client, Server or pass through
Automatic Provisioning Capacity
- Integrated provisioning master to control up to 300 GWN Series WiFi Access Points
Management
- Web, CLI
Energy
- 802.3at PoE
- Power supply included: 12V / 2A
- Maximum power consumption: 16W
Environment
- Operating: 0 ° C to 50 ° C
- Storage: -10 ° C to 60 ° C
- Humidity: 10% to 90% non-condensing
Physical Specifications
- Unit Dimensions: 200 x 136 x 37mm; Unit Weight: 570 g
- Package Dimensions: 324 x 163.5 x 54mm; Package Weight: 930 g

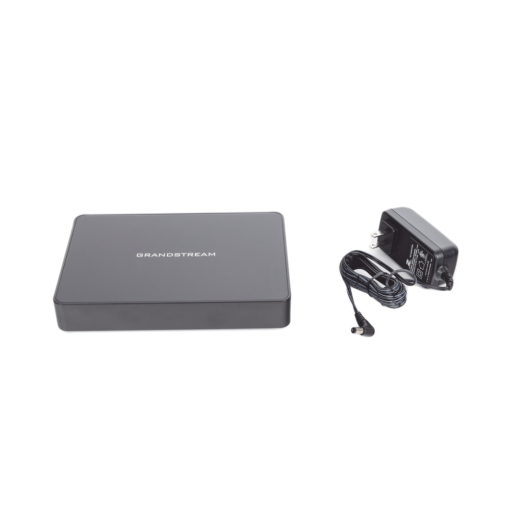

Package content
- GWN7000 Enterprise Router
- 12V / 2A Power Adapter
- Quick Installation Guide
- General Public License Guide
Accordance
- FCC, CE, RCM, IC
| Weight | 3 lbs |
|---|---|
| Dimensions | 13 × 7 × 3 in |
