13,000 ft / 4 km Drum ADSS Aerial Optical Fiber Cable, G.652D, Singlemode, 48 cores, Outdoor, Black Sheath, Span 200

The All Dielectric Self Supported (ADSS) optical fiber cable is designed for aerial installations between poles. ADSS cables withstand the necessary tension thanks to aramid threads and do not contain metallic elements.

Note: Free shipping (only to major cities, not applicable in extended areas). A forklift or ramp is required for loading/unloading and/or maneuvering for displacement for orders of 10 reels or more.

Technical Specifications:

• Optical Fiber ADSS G.652D Single-mode Loose Tube
• Outer Cover: HDPE (High-Density Polyethylene)
• Maximum Tension: 3800N
• Anti-tracking (up to 110kV)
• Span (Distance between Poles): 200 meters
• Protection against UV and moisture
• Minimum Bending Radius: Installation 25D, Operation 12.5D
• Crush Resistance: 1000N/10cm
• 48 fibers
• Black Sheath

Physical Characteristics:

• Nominal Diameter (D): 10.9 ± 0.5mm
• Operating Temperature: -20ºC to +65ºC
• Nominal Weight (kg/km): 91 ± 15 kg

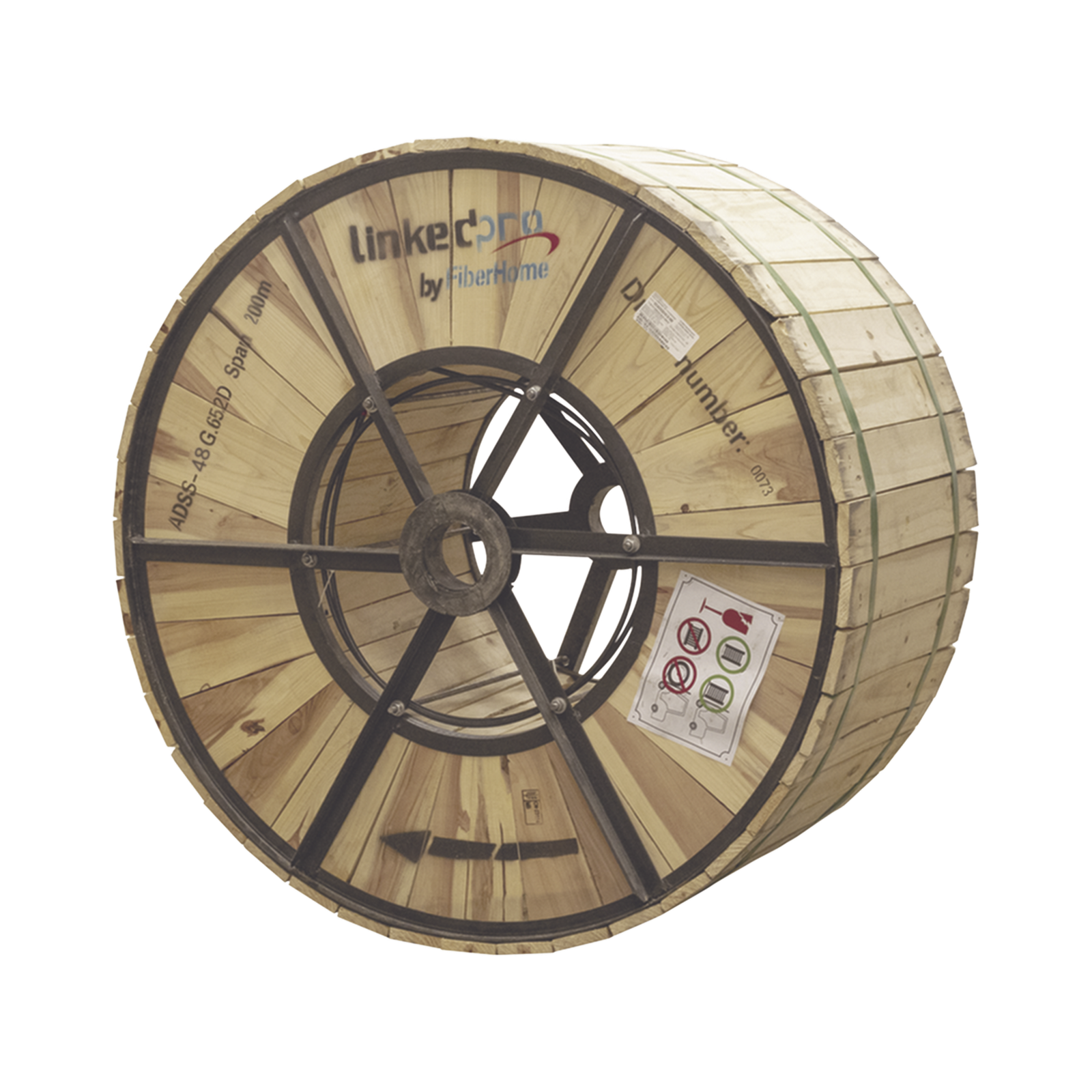

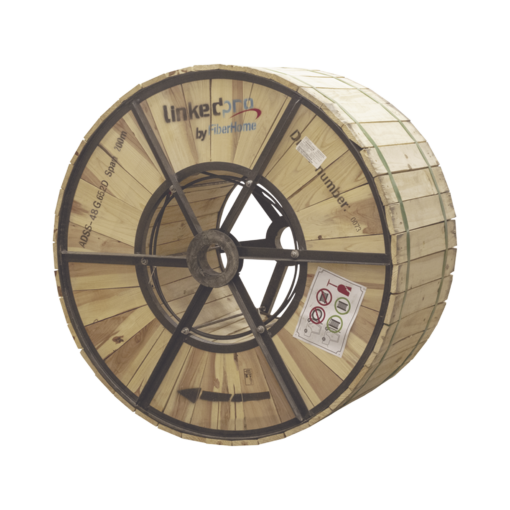

• 4 km / 13,000 feet reel
• Gross Reel Weight: 490 kg / 1,080.3 lbs
