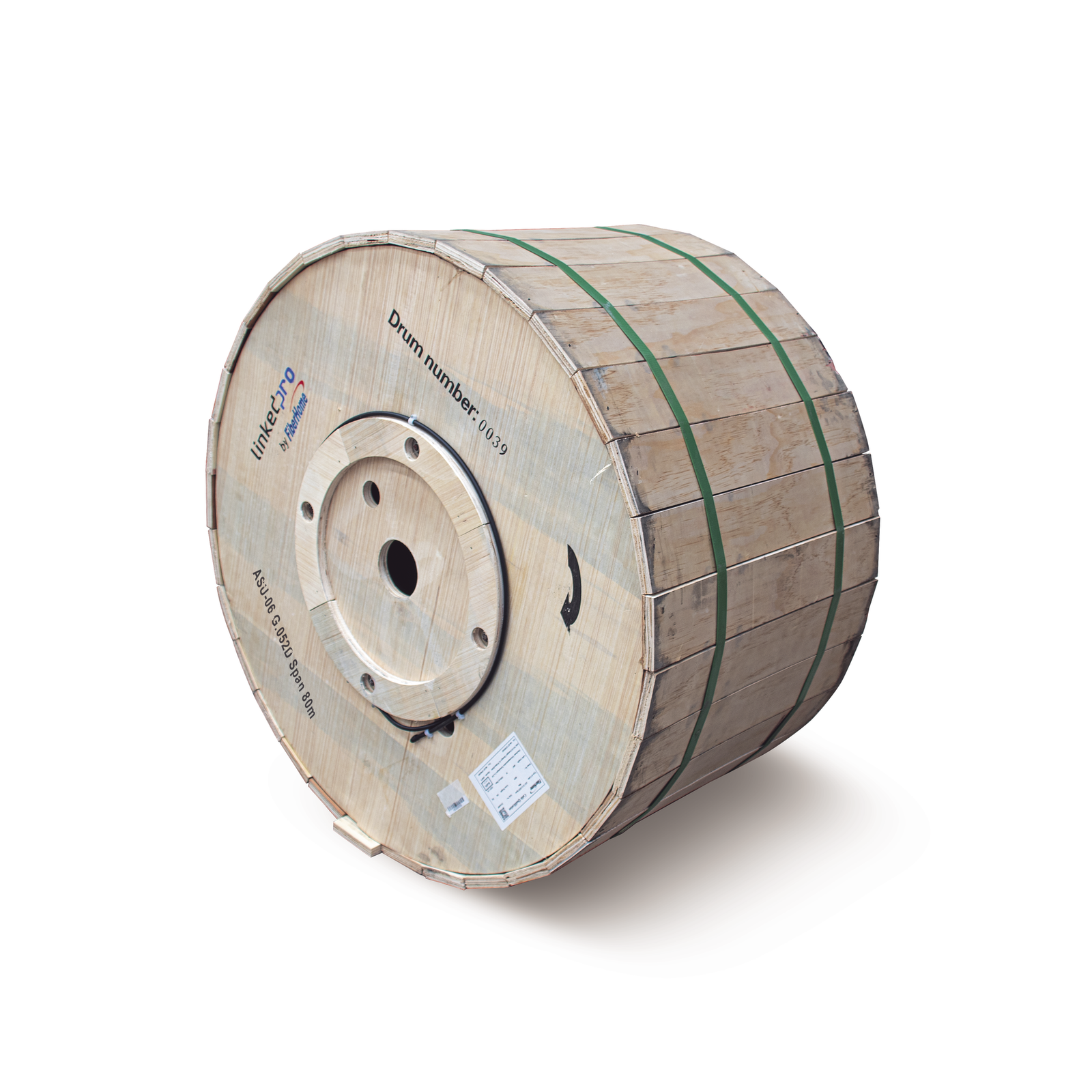

4 km Spool of Aerial Optical Fiber Mini ADSS (ASU) G.652D, Singlemode 6 Wires, Outdoor, Span 80, Loose Tube

The All Dielectric Self Supported (ADSS) optical fiber cable is designed for aerial installations between poles. ADSS cables withstand the necessary tension thanks to aramid threads and do not contain metallic elements.

Note: Free shipping (only to major cities, not applicable in extended areas). A forklift or ramp is required for loading/unloading and/or maneuvering for displacement for orders of 10 reels or more.

Technical Specifications:

• Single-Mode Loose Tube ADSS Optical Fiber G.652D
• Outer Cover: MDPE (Medium-Density Polyethylene)
• Maximum Tension: 800N
• Maximum Tension during installation: 1250N
• Anti-tracking (up to 110kV)
• Span (Distance between Poles): 80 meters
• Protection against UV and moisture
• Minimum Bending Radius: Installation 20D, Operation 10D
• Crush Resistance: 1000N/10cm
• 6 fibers
• Black Sheath

Physical Characteristics:

• Nominal Diameter (D): 6.6 ± 0.3mm
• Operating Temperature: -20ºC to +65ºC
• Nominal Weight (kg/km): 50 ± 10 kg
• 4 km / 13,000 feet reel
• Reel Dimensions (in): 37.4 x 37.4 x 21.8
• Reel Dimensions (mm): 950 x 950 x 554
• Gross Reel Weight: 425.5 lbs / 193 kg
