Dome Type Mechanical Sealing Fiber Optic Splice Closure 5 (1 Oval, 4 Round) ports, 6 Splice Tray of 24 FO / up to 144 splices

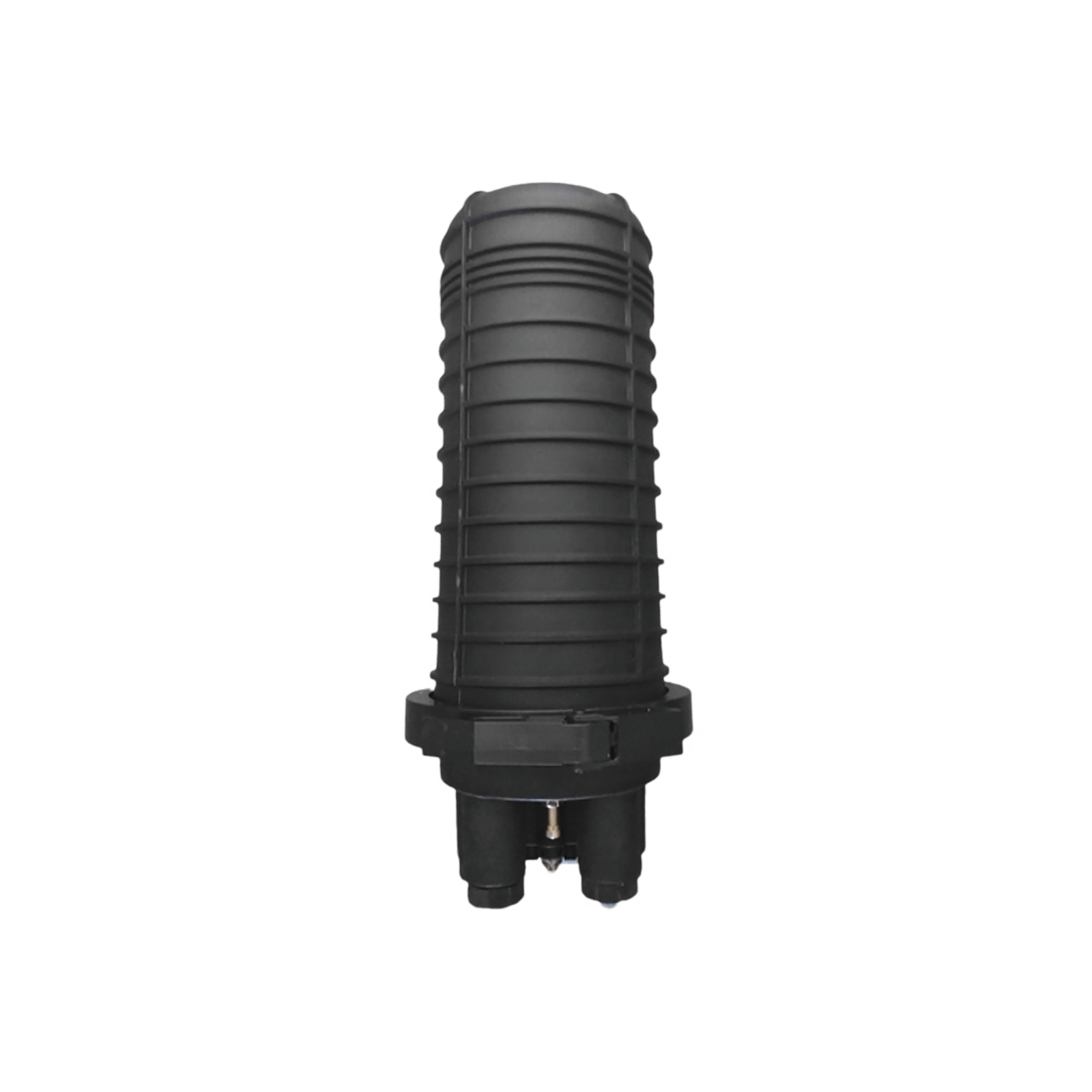

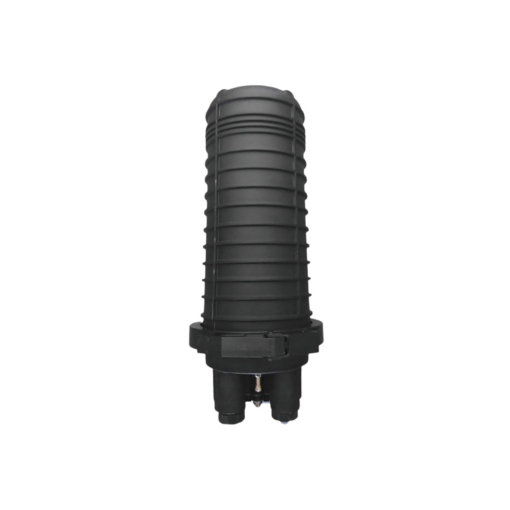

Dome Type Mechanical Sealing Fiber Optic Splice Closure

Description:

LP-FAB-LPSC-BDM-C5 type of Fiber Optic Splice Closure is a member in dome series of optical fiber cable splice closures. This model has four small circular cable entry ports plus one big circular port for express (looped) cable. The sealing component is made from silicon. The cables and the closure are sealed in a mechanical way with the help of compacting pressure from the plastic screws (nuts) and the circular plastic hoop.

This model is suitable for different methods of branch connection, including branching and splicing of uncut cables. It could be used for aerial, pole-mounting, wall-mounting and underground applications. This model is excellent in sealing performance, easy for installation, wide applications and is prior choice of fiber connection equipment.

Features:

1. The casing of enclosure is made of PP,which is a kind of high-strength engineering plastic.
2. Its protection rate is IP68.
3. Reliable cable introducing, fixing, protection, grounding devices.
4. The base has a variety of ports for different type of cable,the oval port is used for uncute cable.

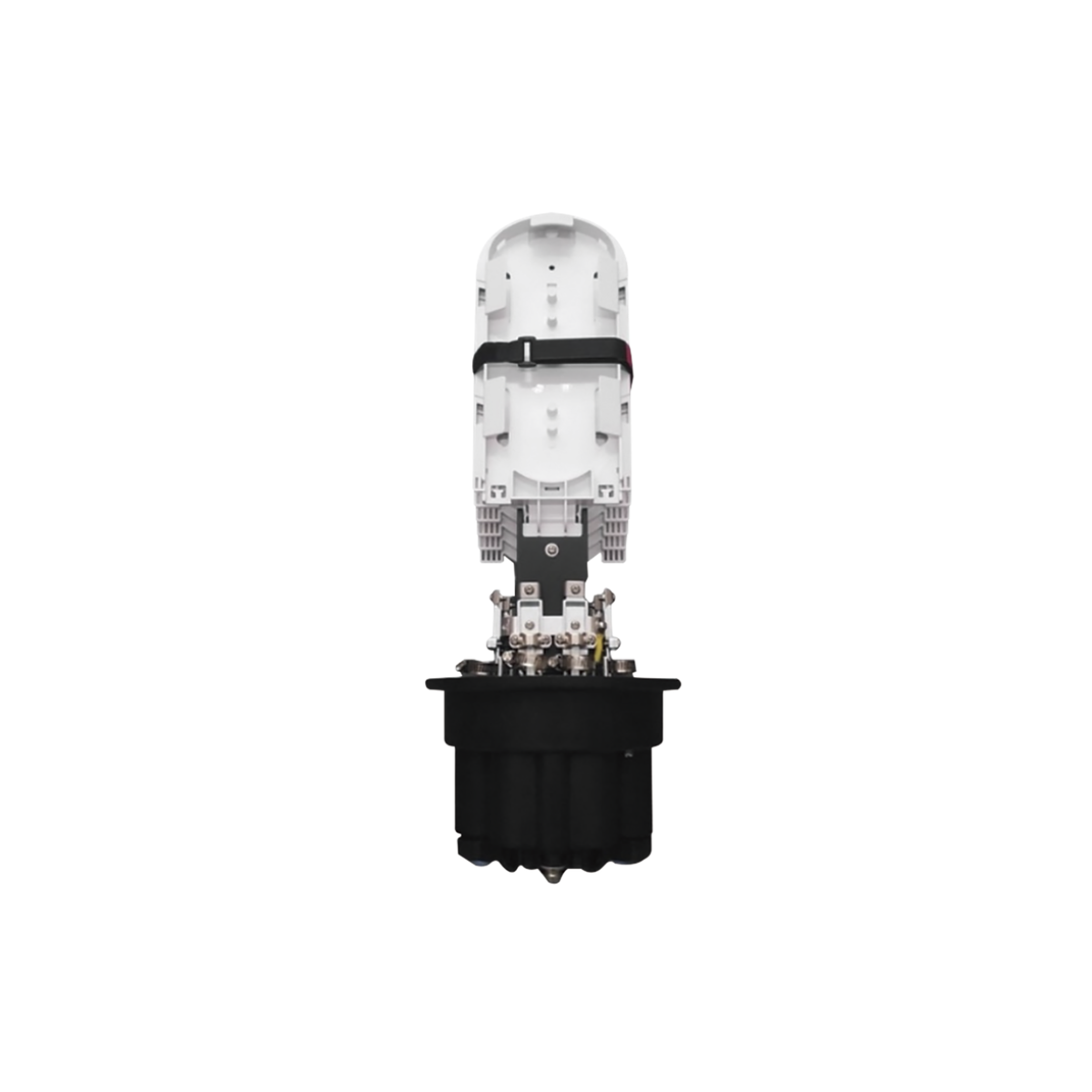

5. The turning tray is used for storage of cable.

Specification:

• Dimension: 450(H)×φ230(D)mm

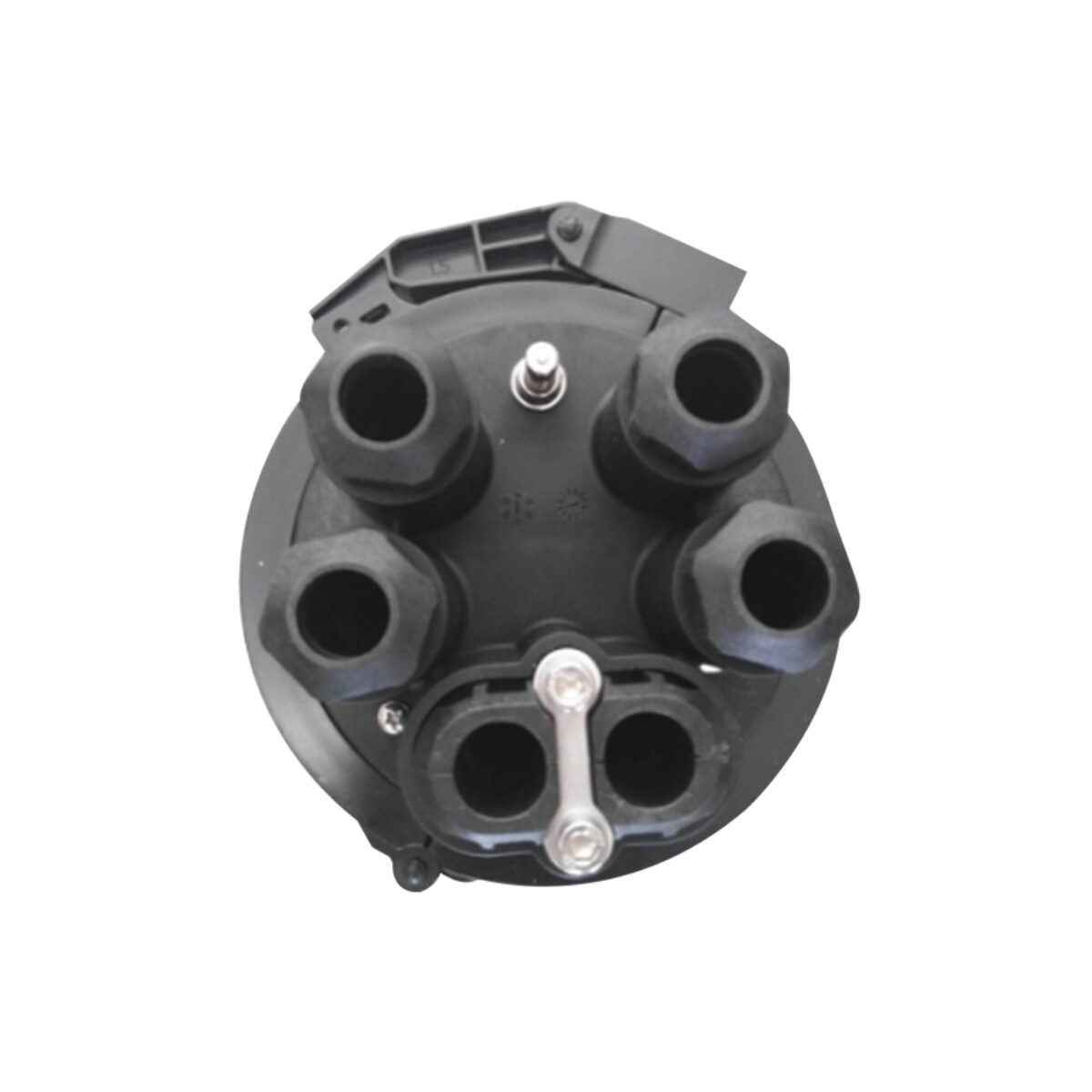

• Cable Ports: 1 oval uncut port | 4 round ports
• Diameter: Φ8 – Φ18mm | Φ8 – Φ18mm

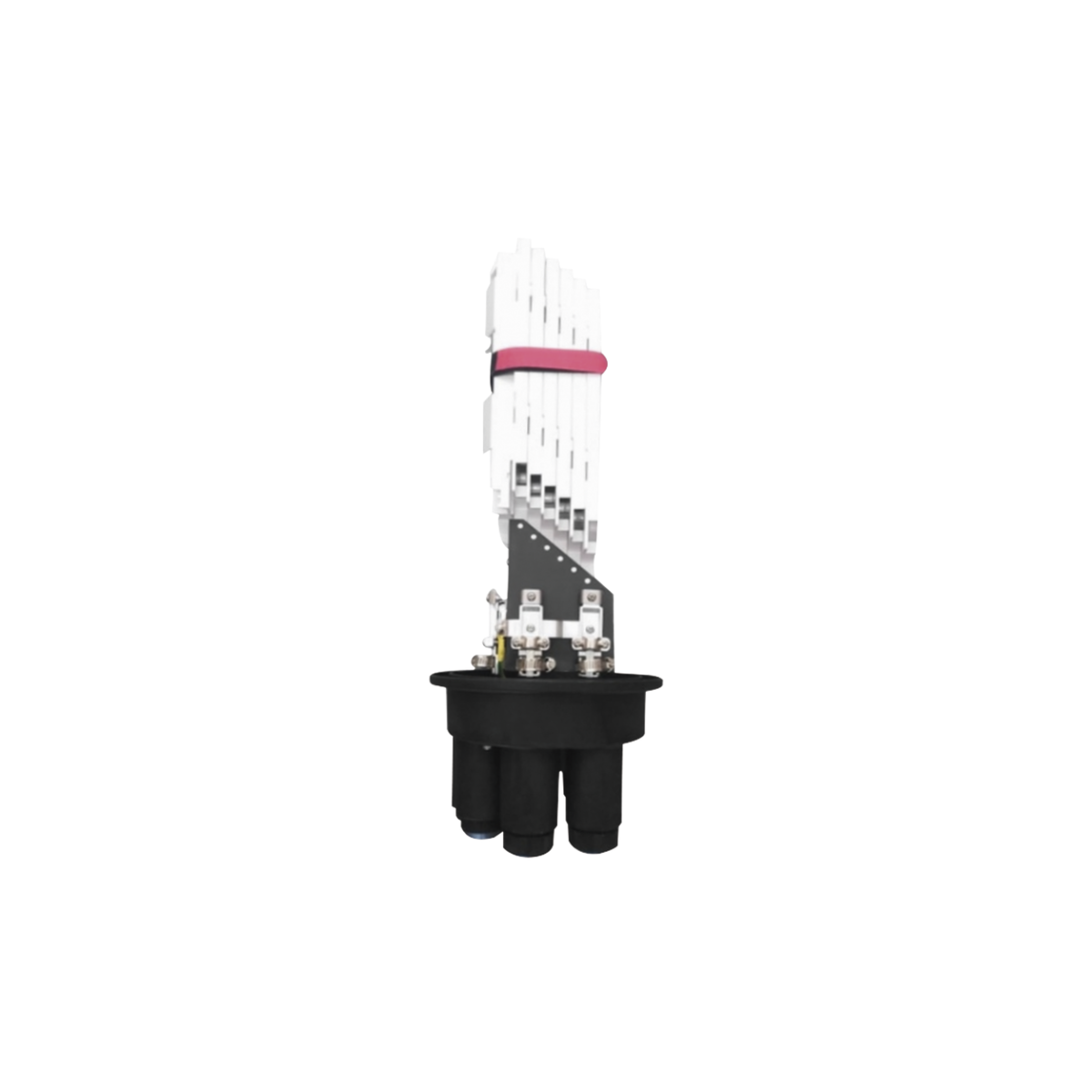

• Quantity of Splice Tray: 6 pcs(max)
• Body Material: PP
• Assembling method: Wall mounting, Pole, Underground Pipe
• Sealing: IP68
• Impact Test: IK10
• Temperature: -40°C~65°C
