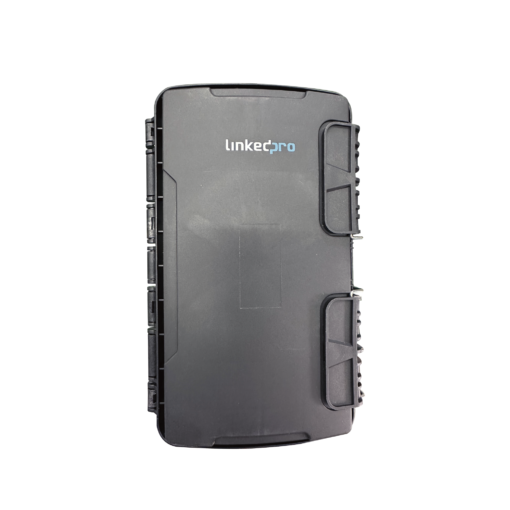

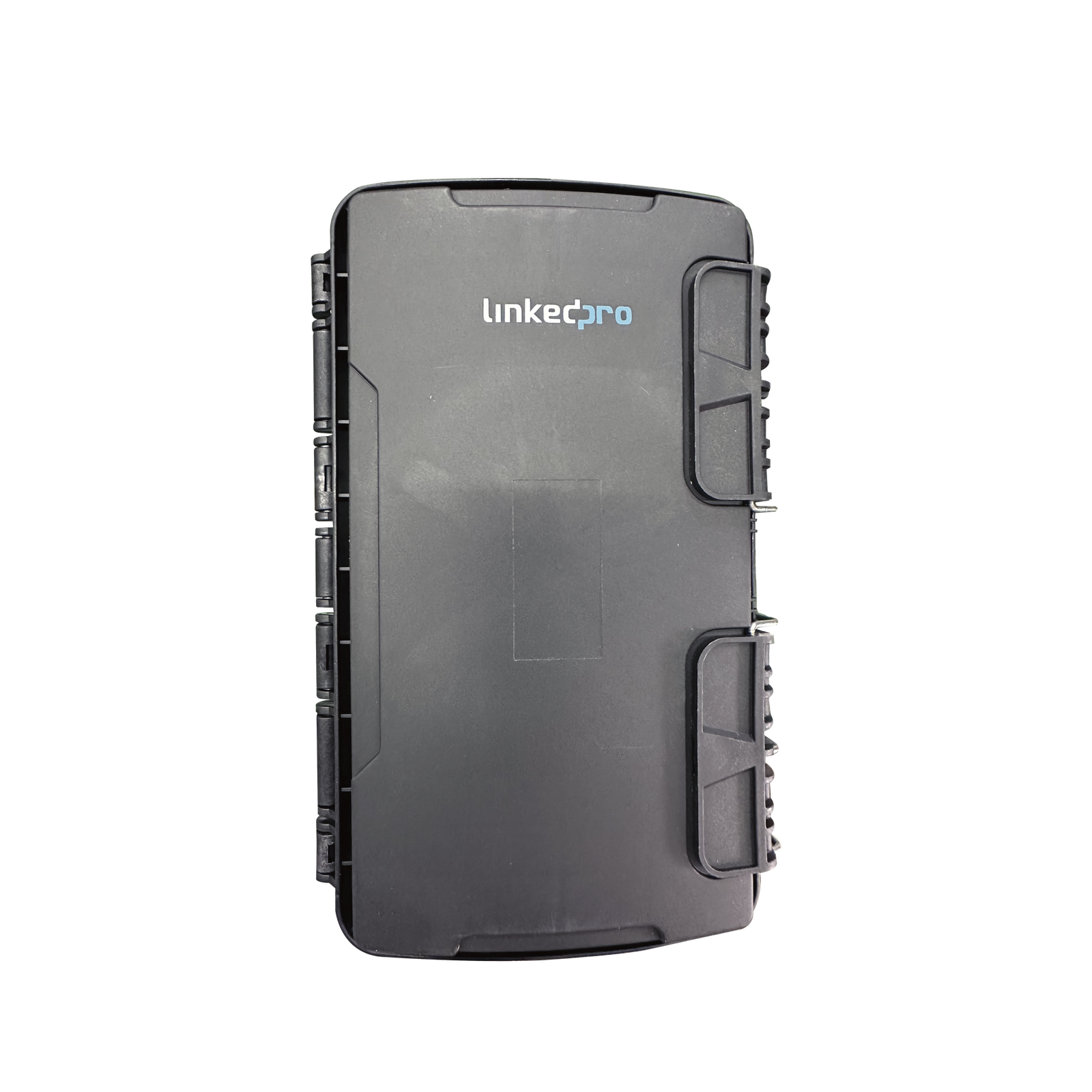

FTTH Termination Box, 16 Ports, IP65, Loaded with 4 Splice Trays of 24FO, Black, Standard Configuration for Wall

LinkedPro Fiber Termination Box is a wiring line device of user distributions in FTTH system. It provides protection and management for fiber cable, and be used for terminating, cable branching, cross connection. It is mainly used for user access point in FTTH-ODN network.

This box can be divided into indoor and outdoor type according to the installation scenario and can be divided into distribution type and optic-split type according to the function.

It is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for FTTx network building.

Features:

• Made of high-quality engineer plastic material (PP), Good mechanical strength, elegant appearance, sturdiness, and durability.
• IP68 Protection.
• Suitable for indoor or outdoor, wall-mounted, pole installation.

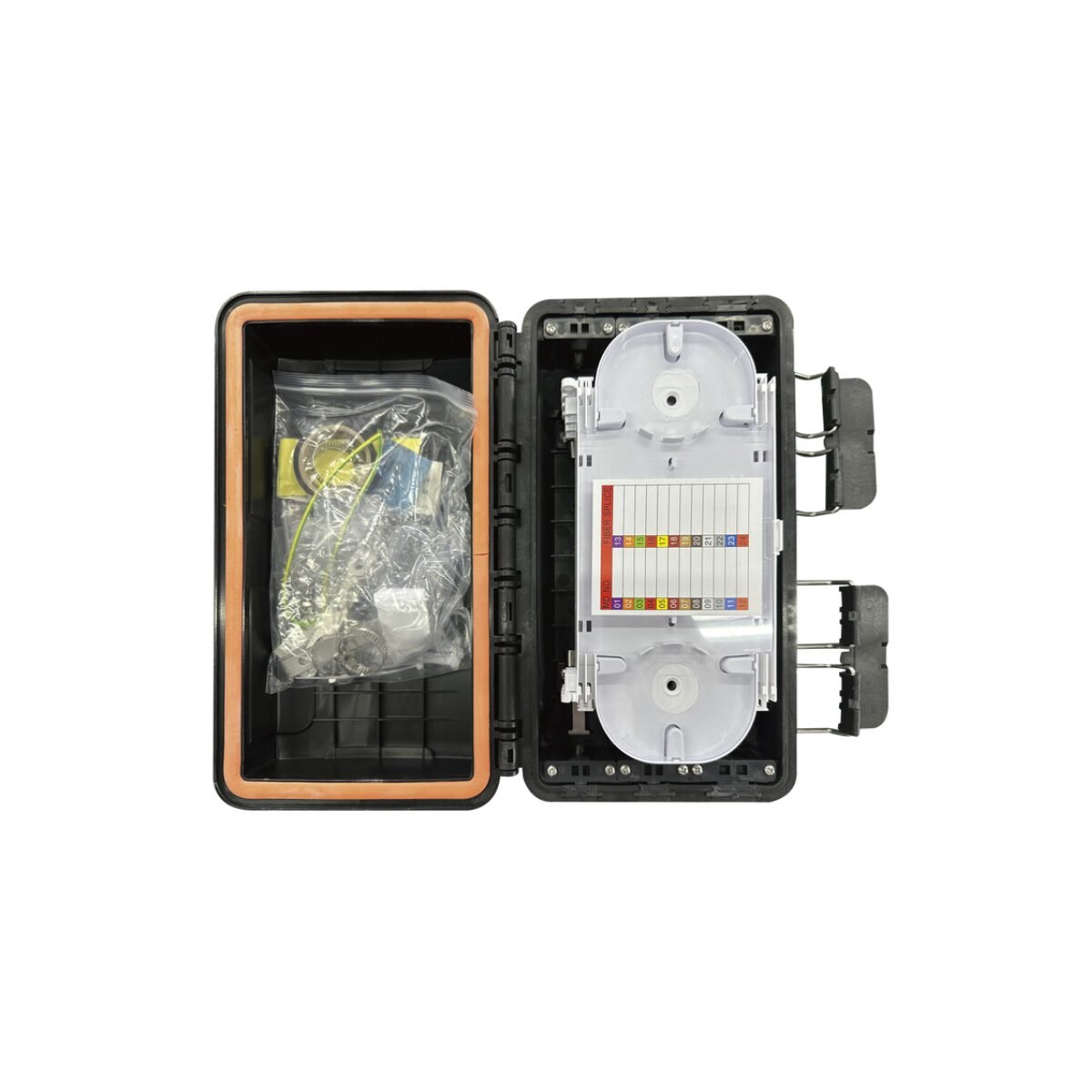

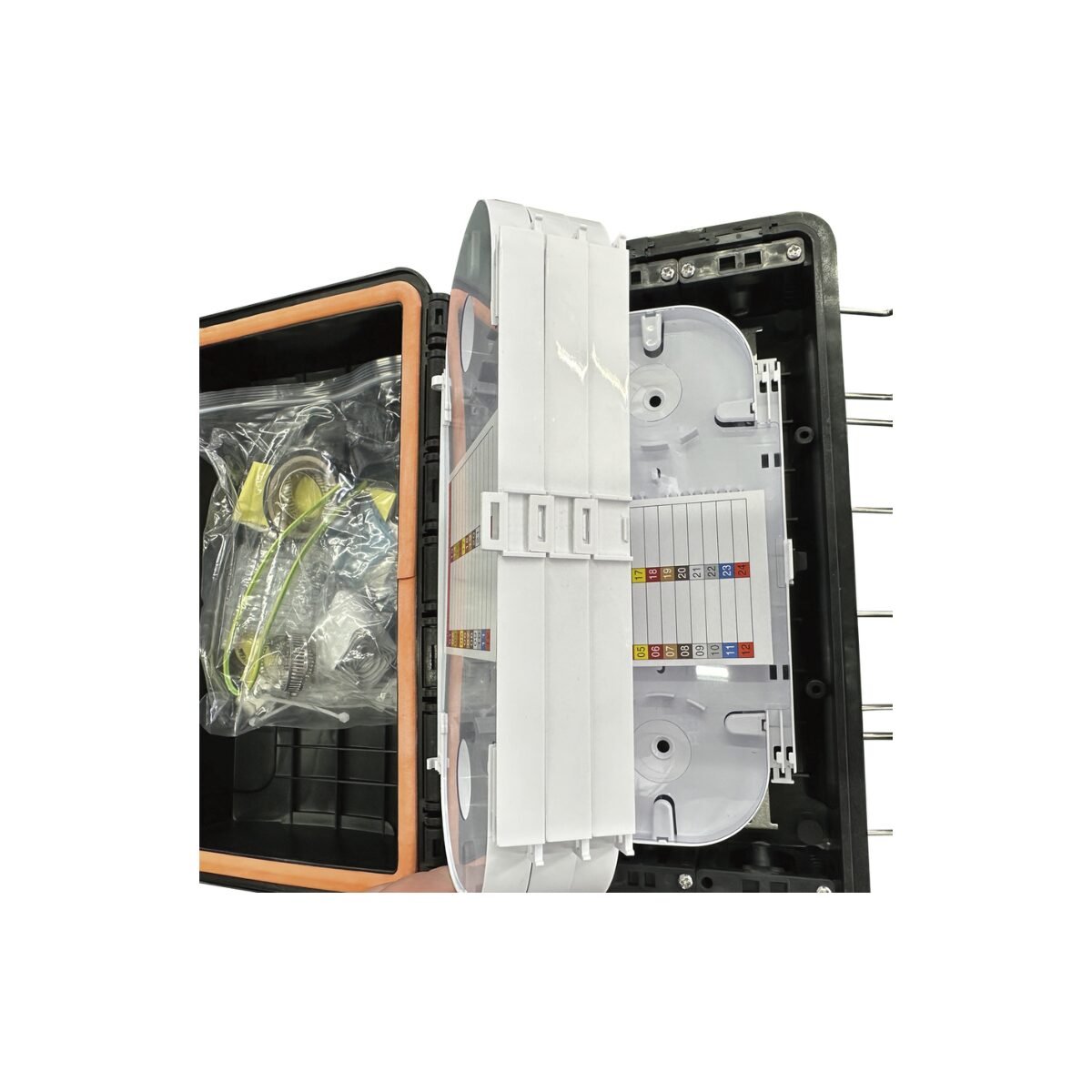

• Built-in Stacked splice tray, easy for open, the splice tray can be taken down, easy for installation and maintenance.
• Fiber routing is reasonable.
• 1*8 and 1*16 micro type Splitter can be installed
• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all in one

Caracteristicas fisicas:

• Dimensions: 12 x 8 x 4 in (300 x 210 x105 mm)
• Max Capacity: 16 SC/APC
• Input cable diameter: 4*12mm
• Output cable diameter: 16* 2x3mm
• Packing Information
  • GW: 43 lb (19.50kg)
  • QTY:12pcs/carton
  • 24 x 18 x 15 in (615 x 445 x 370 mm)
